Professional Guide to Framing a Strong, Long-Lasting Wall

Wall framing serves as the backbone of any building. It supports floors, roofs, and openings, and prepares the structure for electrical, plumbing, insulation, and finishes. Proper wall framing ensures a straight, sturdy, and code-compliant structure. At Franke Construction, we’ve refined these techniques through years of residential and commercial projects across Ventura County. This guide walks through framing a wall step by step, highlighting the reasoning behind each stage.

Planning and Layout

Before cutting or assembling any lumber, layout is key. Marks are placed on the “plates” to indicate stud spacing, corner locations, and openings for doors and windows. Standard residential construction typically uses 16-inch on center stud spacing, and less commonly 24-inch on center spacing. Your studs need to be laid out correctly to align properly with sheathing, drywall, and insulation. Accurate layout ensures all components fit together properly and simplifies assembly.

Selecting the Right Lumber

Choose straight, dry, grade-verified dimensional lumber such as 2x4 or 2x6 depending on load requirements, building codes, and insulation needs. Exterior wood framed walls in residential builds are typically 2x6, whereas the interior are commonly 2x4’s. High-quality lumber performs predictably over time, while warped or wet boards can create crooked walls and long-term structural issues. Franke Construction sources only high-quality lumber for our builds, working with local vendors we’ve partnered with for decades to ensure consistency, reliability, and premium materials.

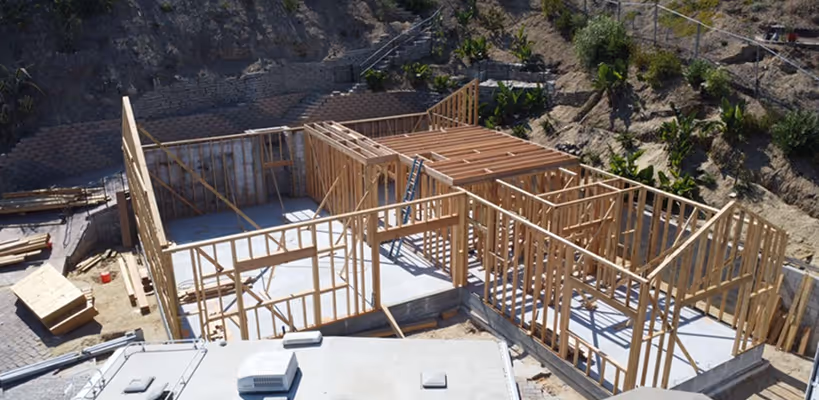

Assembling the Wall Frame on the Ground

The wall frame is assembled flat on the ground. The bottom plates are laid-out on the floor horizontally, and the studs vertically. Make sure your layout marks for each stud are aligned, and begin to frame in your studs. Vertical studs are positioned according to the layout, and headers are installed above doors and windows. Trimmers and king studs support the headers and transfer loads around openings. Double top plates are added for load-bearing walls, providing continuity and strength. Corners and intersections are carefully framed to provide backing for drywall, siding, and insulation.

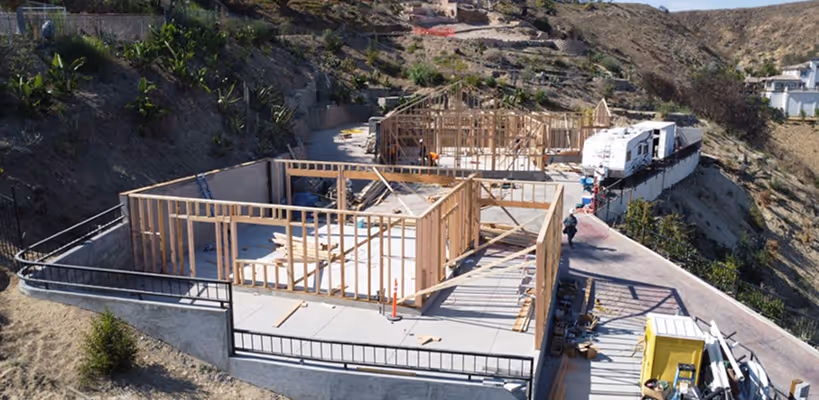

Raising the Wall + Plumb and Line

Once assembled, the wall is lifted into place. At this stage, the team ensures the wall is plumb, level, and square. We do this by using a large level that is the same size as the wall. Temporary bracing keeps the wall stable while adjustments are made. Ensuring correct plumb and line at this stage prevents problems with doors, windows, trim, and finish materials. Having correctly positioned walls is critical to achieve a beautiful and lasting home.

Securing the Wall

When placing a wall, it must be fully secured to the floor or foundation. This can be done with anchor bolts, hold downs, and nailing directly into a wood subfloor. Connections across intersecting walls at channels and top plates maintain continuity and complete the load path. Temporary bracing can be removed once adjoining walls are tied in by joist or rafters, leaving a stable, strong, and plumb wall ready for the next construction phases.

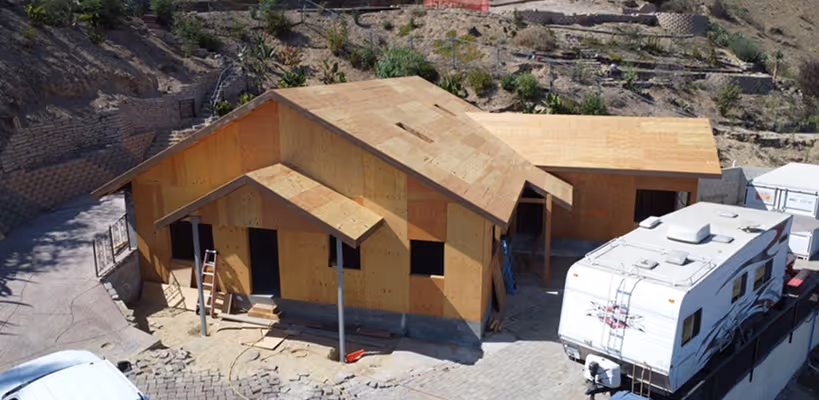

Installing Sheathing

After the wall is raised, plumbed and lined, then structural sheathing is applied. Sheathing adds lateral strength, ties studs together, and prepares the wall for exterior finishes. Panels are fastened with the correct nails, following spacing requirements and ensuring edges fall over studs. Sheathing can be installed before or after a wall is stood. It is good to keep in mind, it’s heavier to stand a wall when it is sheathed on the floor. For this reason, it is common to apply sheathing after walls are stood and plumb and lined. Franke Construction are experts at installing sheathing to ensure proper fit, alignment, and load transfer throughout the structure.

Common Errors to Avoid

Rushing assembly, inconsistent stud spacing, misaligned headers, or walls not fully plumbed before sheathing can compromise structural integrity and finish quality. Careful measurement, adherence to code, and attention to alignment ensure a strong wall and avoid costly rework.

Why Expert Wall Framing Matters

Correctly framed walls withstand settling, wind, seismic forces, and daily use. Precision during framing improves energy efficiency, finish quality, and long-term stability. Whether building an addition or a full home, a properly framed, raised, plumbed, and sheathed wall sets the stage for every trade that follows.
